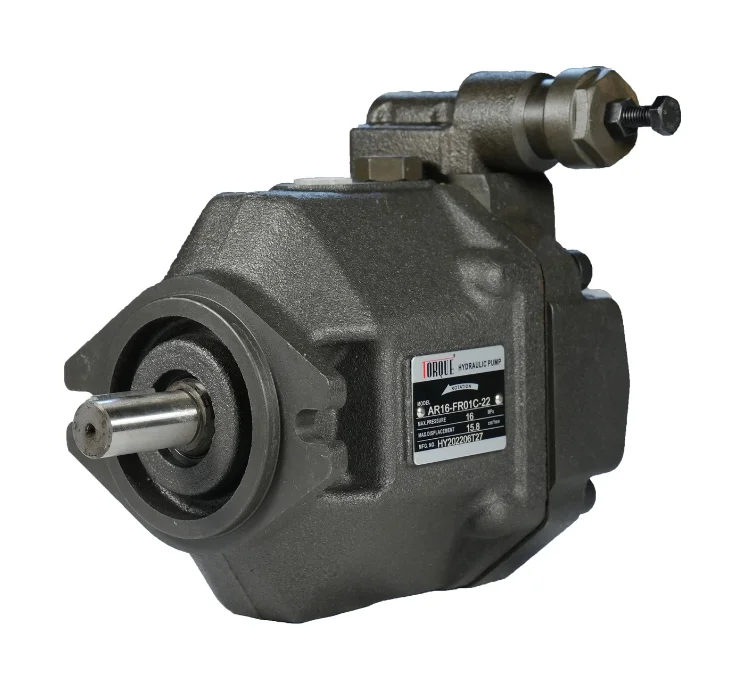

Torque TAR Hydraulic Piston Pump

TORQUE TAR series pumps are designed for industrial hydraulics with pressure compensator type it is used in CNC and special purpose machinery with high efficiency. Pressure range upto 210 bar and displacements up to 22cc provides wide range in terms of selection. Interchangeable to Yuken ® AR series FR 01.

Light Weight and low noise
Displacement range 16,22 cc/rev
Single, multi displacement units
Controller options: Pressure Compensator (FR01)
Interchangeable for Yuken ® AR series

Get A Quote Contact US

Specifications
Description
Dimensional Data
Spool Symbol
Model Code Breakdown
Application

Torque TA Hydraulic Piston Pump Specifications

Model	Flow cm3 / rev	Minimum Adjustment Flow cm3 / rev	Operating Pressure MPa		Shaft Speed Range r/min		Mass
Model	Flow cm3 / rev	Minimum Adjustment Flow cm3 / rev	Rated	Intermittent	Max	Min	kg
TA10	10.0	2	16	21	1800	600	8.5
TA16	15.8	4	16	21			16.5
TA22	22.2	6	16	16			16.5
TA37	36.9	10	16	21			28.0
TA56	56.2	12	16	21			35.0
TA70	70.0	30	25	28			58.5
TA90	91.0	56	25	28			72.5
TA100	100	62	21	21			72.5
TA145	145	83	25	28			92.5T
